LUSAS 구성 요소 그룹

다음과 같이 구성됩니다.

  • Members (구성 요소)
  • Attributes (속성)
  • Assignments (할당)
  • Utilities (유틸리티)
  • Model (모델)
  • Results (결과)

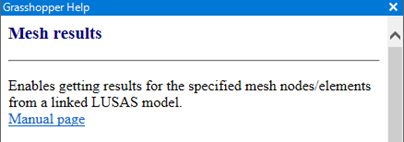

모든 구성 요소는 Grasshopper 에서 Member를 마우스 오른쪽 버튼으로 클릭하면 표시되는 도움말 페이지에 매뉴얼의 해당 장으로 연결되는 링크를 포함합니다.
